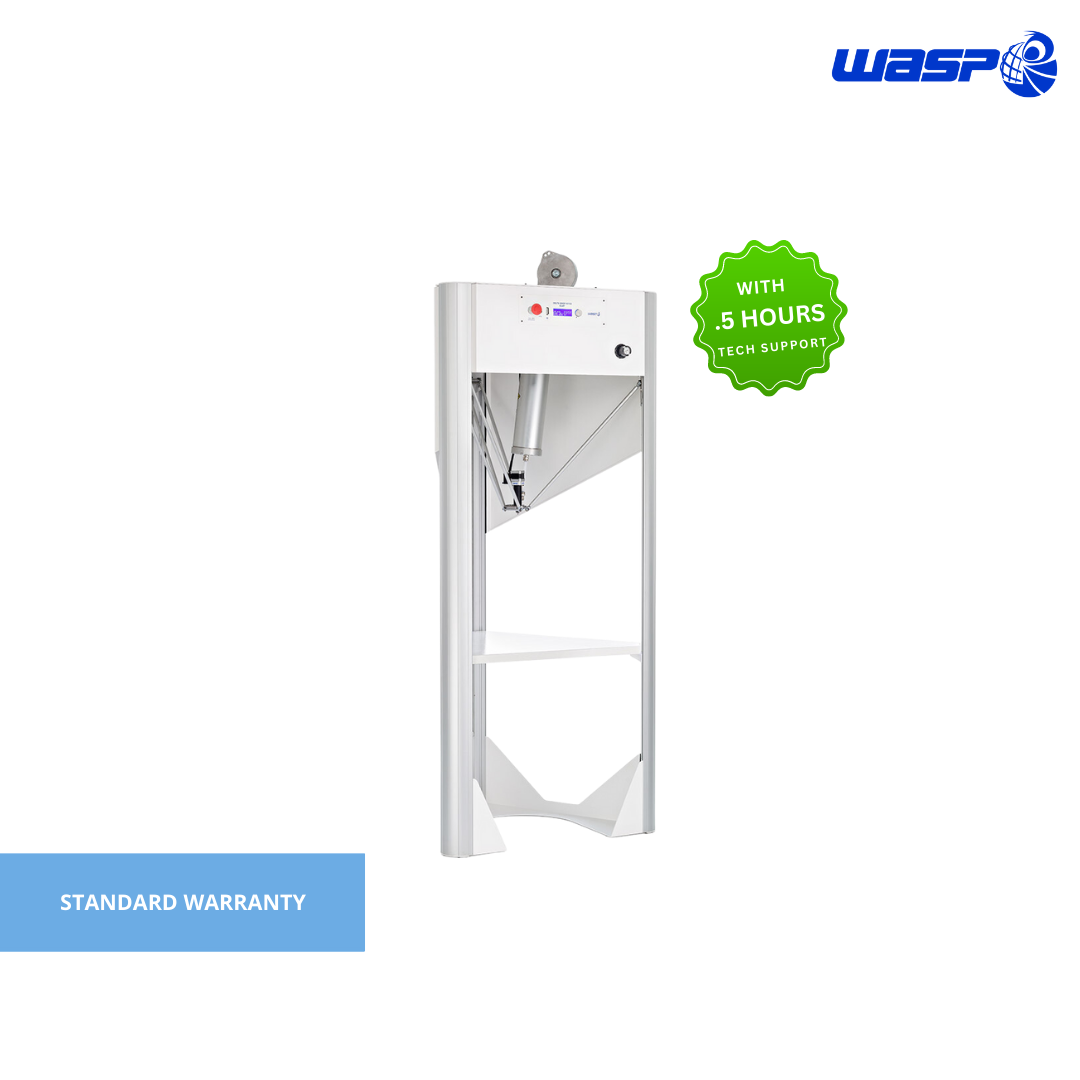

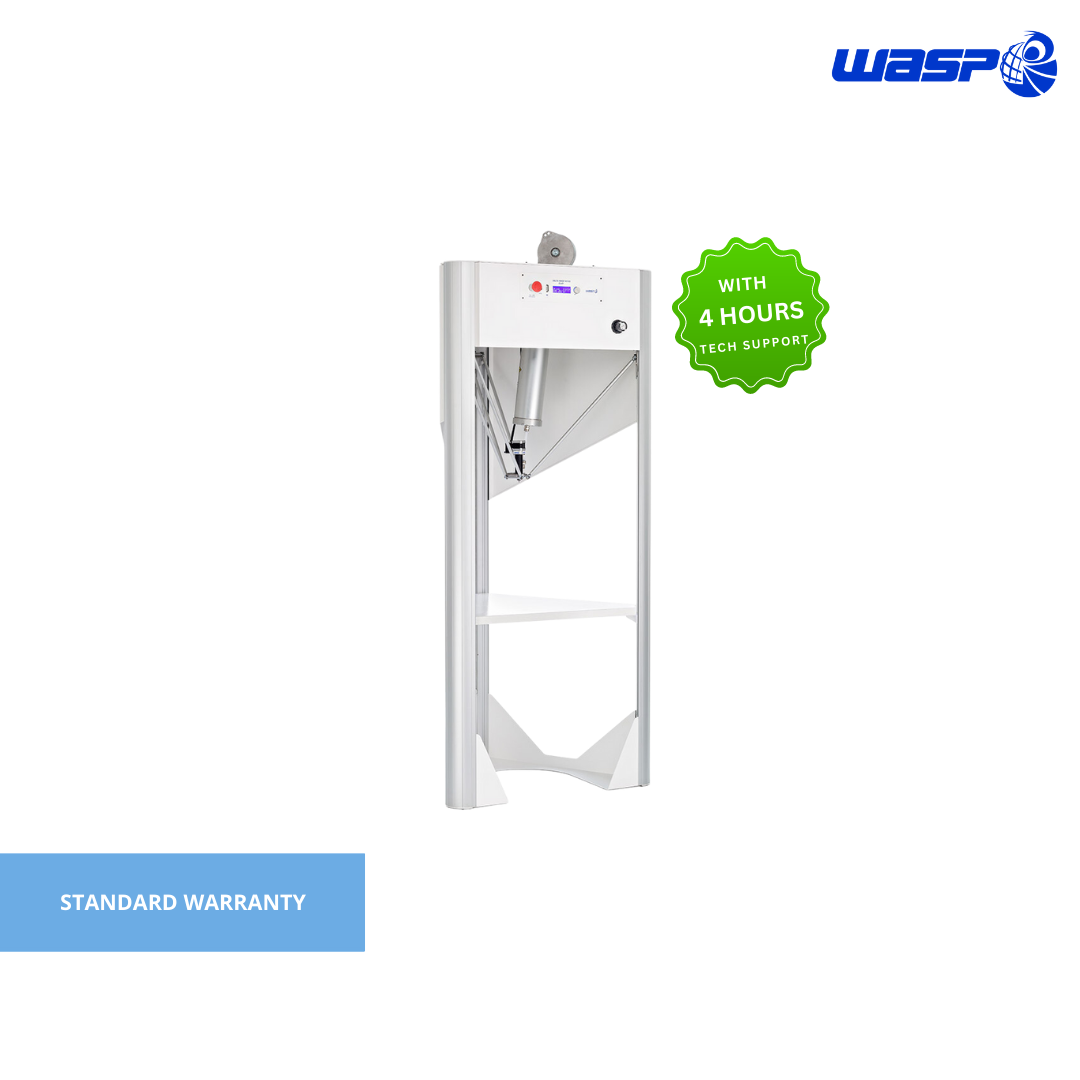

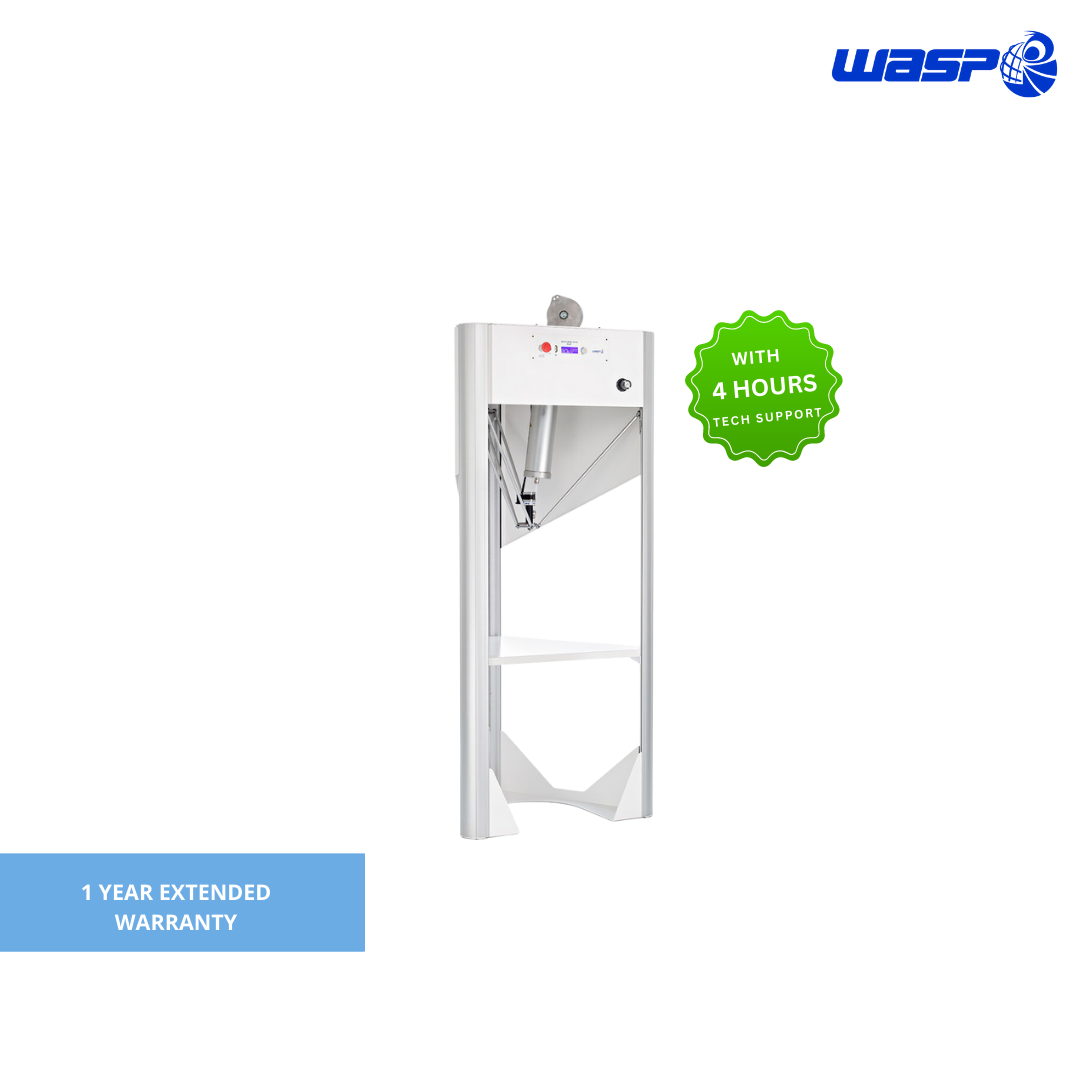

Delta WASP 40100 Clay Printer (110V)

Regular price $10,000.00 $0.00

Accurate and fast using all-ceramic materials. Open and accessible on three sides to interact during printing.

It is possible to print directly on the floor (for objects up to one meter high) or on a removable steel printing surface, located 60 cm(24in) from the ground (useful print volume diam. 400 mm(157in) x H 450 mm(177in)). It is also possible to continue printing without waiting for the piece to dry simply by moving the printer.

3D printer for clay Made in Italy, with a clean and compact design. The aluminum and steel structure guarantees stability and precision, obtaining quality prints with dense fluid materials.


  • 1 5L tank.
  • 2 printing plates in Marine Multilayer.
  • 10 kg of porcelain.
  • Extruder Options:
    • LDM WASP extruder: with 1.2mm diameter (standard)
    • LDM WASP extruder XL:  2mm, 4mm, 6mm, 8mm nozzle diameter included


  • No stop print: with each printed piece, move the printer and continue production.
  • Mold directly on the ground or with an intermediate shelf.
  • Extruder with controlled dosage by screw.
  • Air pressure control integrated on the printer.
  • Trolleys with roller runners to ensure excellent stability.
  • Dedicated firmware.

Tech Specs:

        • Printing volume:
          • Metric: Ø(XY) 400mm x Z 1000 mm
          • Standard: XY 15.75in x Z 39.37 in
        • Minimum layer height: 50 micron;
        • Maximum printing speed: 150 mm/s;
        • Maximum travel speed: 150 mm/s;
        • Acceleration: 500 mm/s2;
        • Software: Operating Systems: Windows, Mac, Linux Slicing software: Cura - SLic3r - Simplify 3D Software interface Printrun - Repetier Host File extension: .stl, .obj, .gcode.
        • Interface: SD Card - LCD display
        • Physical Dimensions: 85x77x195cm (34inX30inX77in)
        • WEIGHT: 80 kg/177lbs
        • Power: Input: 110V 50/60 Hz Absorbed power: 200W
        • TEMPERATURE: Use: 20-30 C° Warehouse: 0-30 C°
        • Mechanics: Frame and cover: Aluminium, Steel, Platform: steel Movements: nylon wheels on aluminum slides

    Recommended Materials:

    • ceramic mixtures
    • Clay
    • Porcelain
    • Gres
    • Earthware
    • Refractory
    • Other


    • Frames and carters: metal sheet (lowers the machine vibrations, grants the best print quality), aluminum, painted steel
    • Print bed: bed in wooden multi-layer
    • Movements: guides on anodized aluminum
    • Open sides give the possibility to stop the printer and interact with the part during the print


    40100 XL LDM/Clay 3D Printer Package SKU PS-9000-1
    Item SKU Price
    Delta WASP 40100 Clay with XL LDM PS-9000 $11,000.00
    BASIC+ TECH SUPPORT PACKAGE PS-12032 $1,200.00
    XL- Screw for LDM (2x) PS-7031 $140.00
    LDM Standard Canister LID PS-9031 $50.00
    White Porcelain 25lbs (2x) PS-0107 $200.00
